Introduction to creating a Visual Studio Extentsion

March 16, 2021

VisualStudio Windows VSIX

As I use a Text Editor, it going to make me want to customize. How i does Visual Studio customize with a creating original extention? Let's learn the basics.

Introduction

I wanted to customize an extension that provides key bindings for Emacs, so I decided to learn how to create an extension. First, you will learn how to create and debug a project.

Requirements:

Visual Studio 2019
Windows 10

Setup

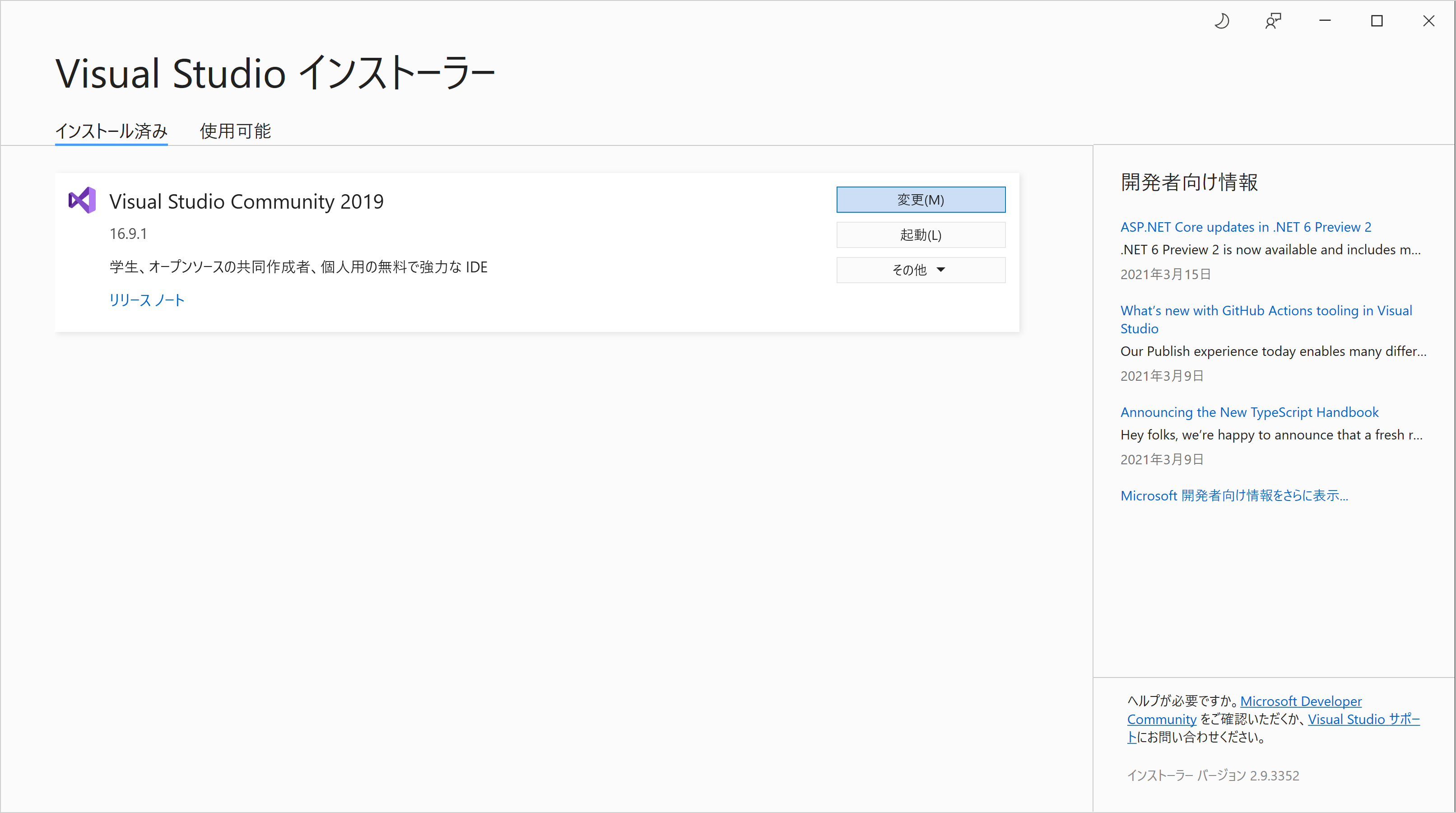

Require Visual Studio SDK. The SDK could install Visal Studio Installer, so launch it.

./images/figure_12.png

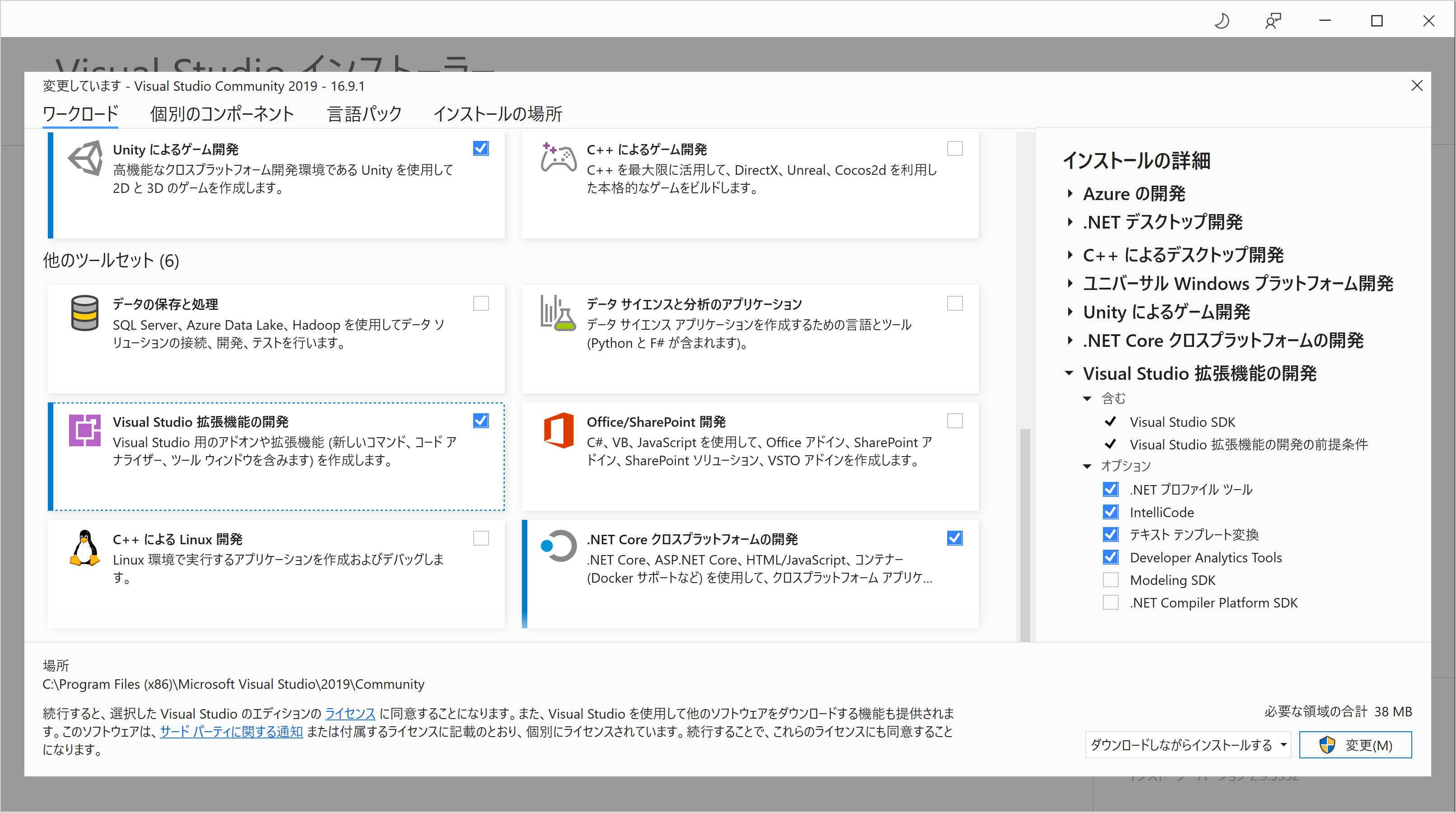

Select Visual Studio 拡張機能の開発, then apply it.

./images/figure_13.png

Done.

Creating a extention

Select VSIX Project.

./images/figure_15.png

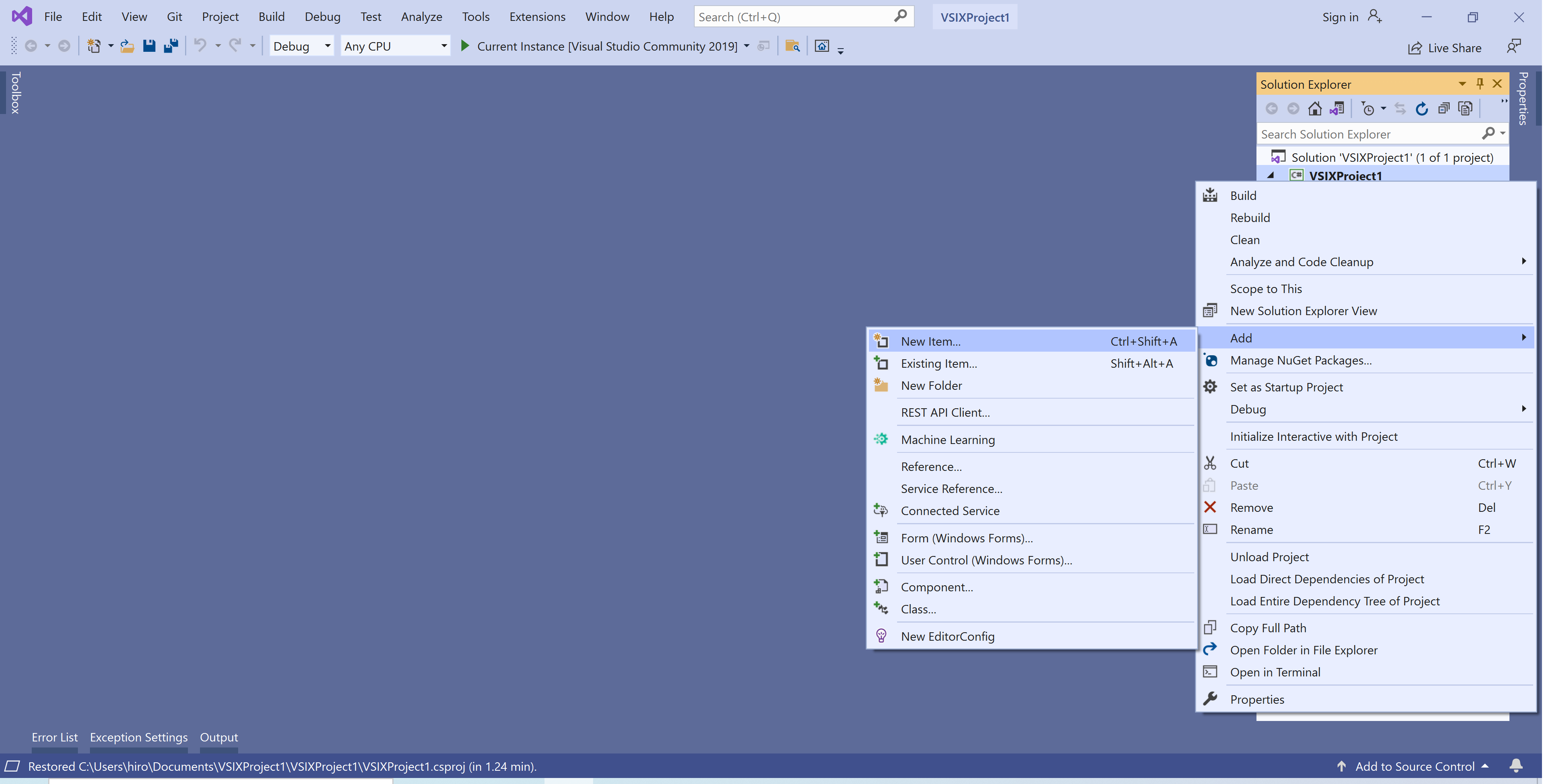

Add file.

./images/figure_17.png

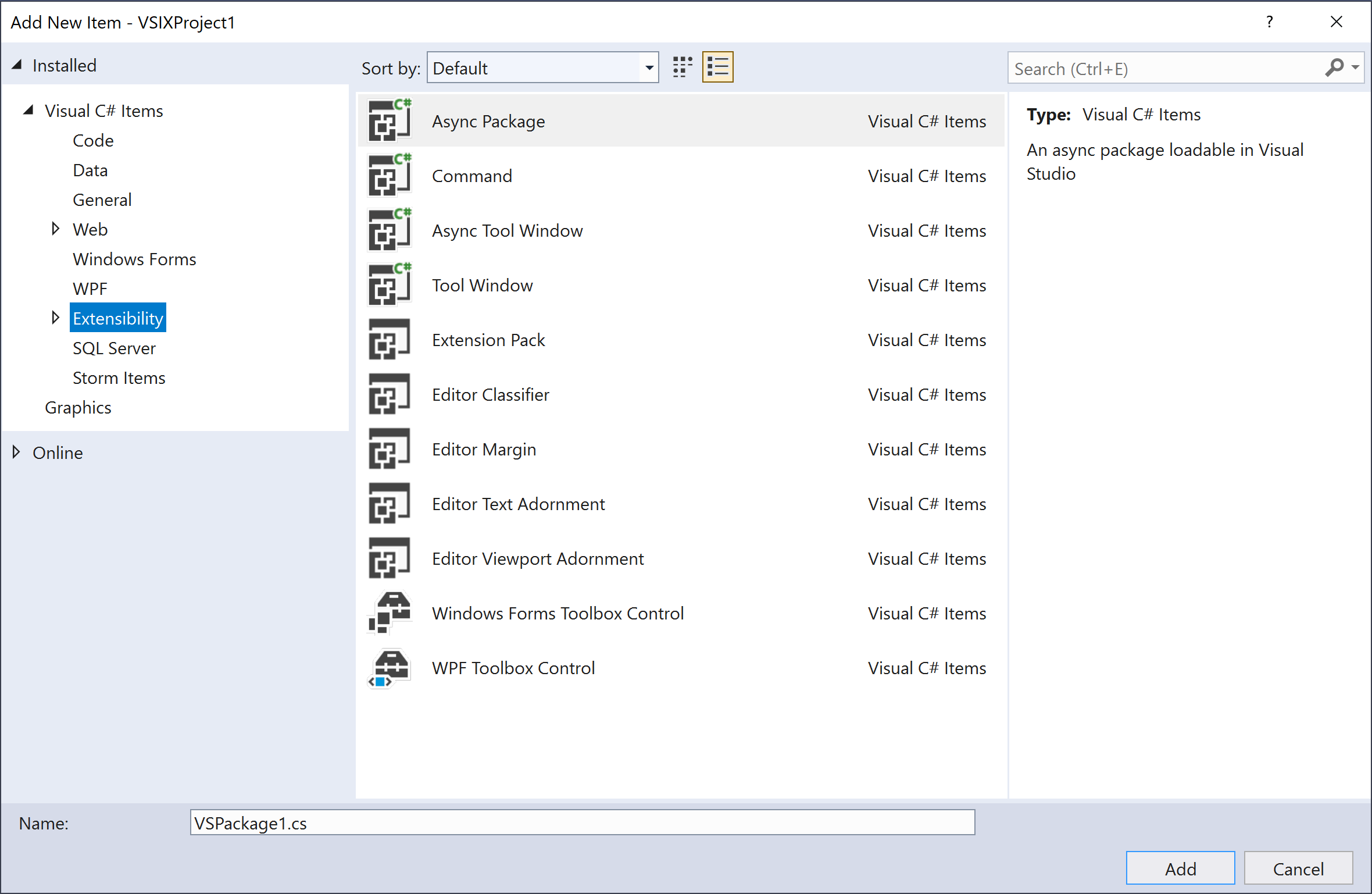

Select Command in Extensibility.

./images/figure_18.png

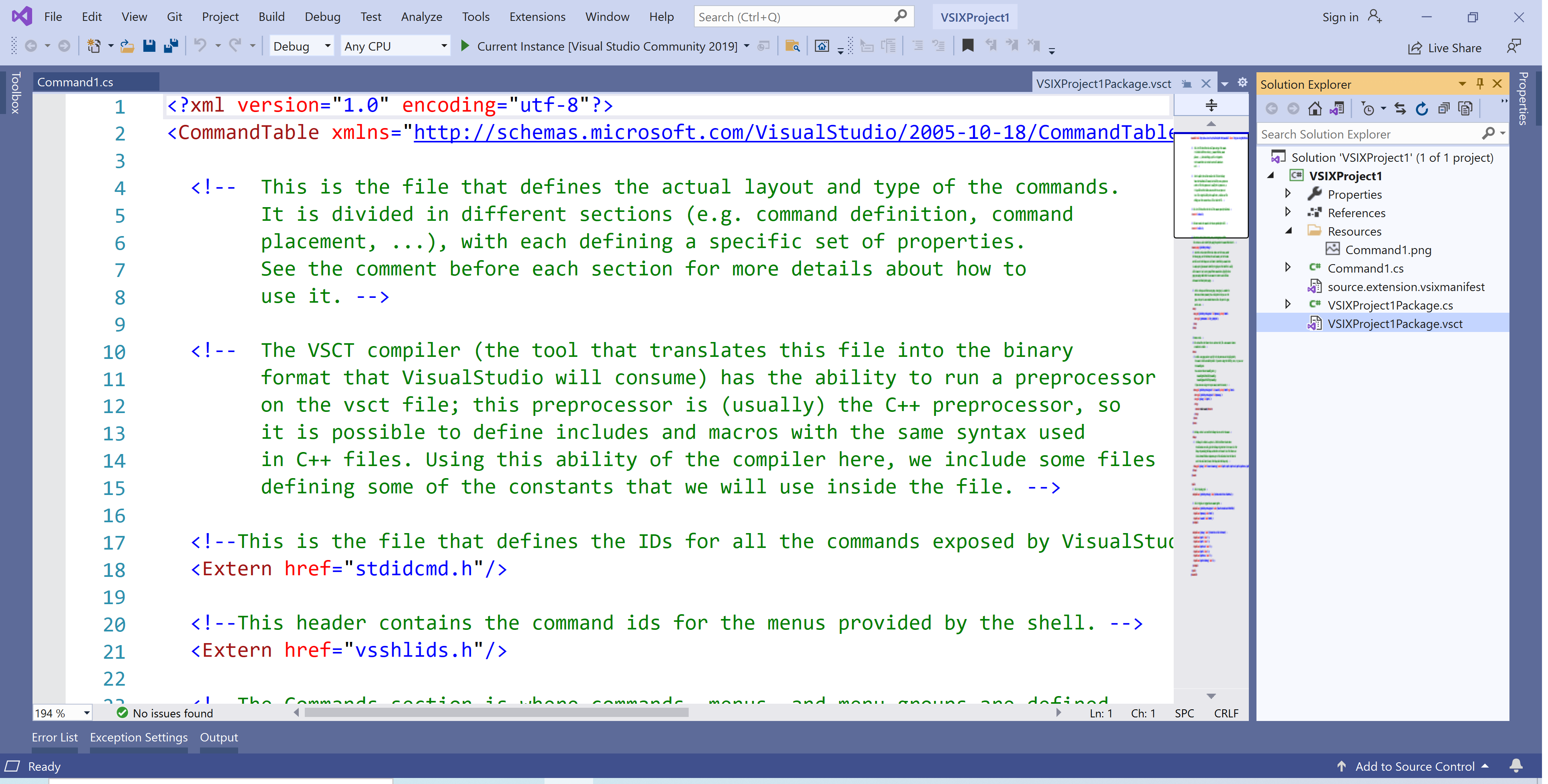

Open .vsct file.

./images/figure_19.png

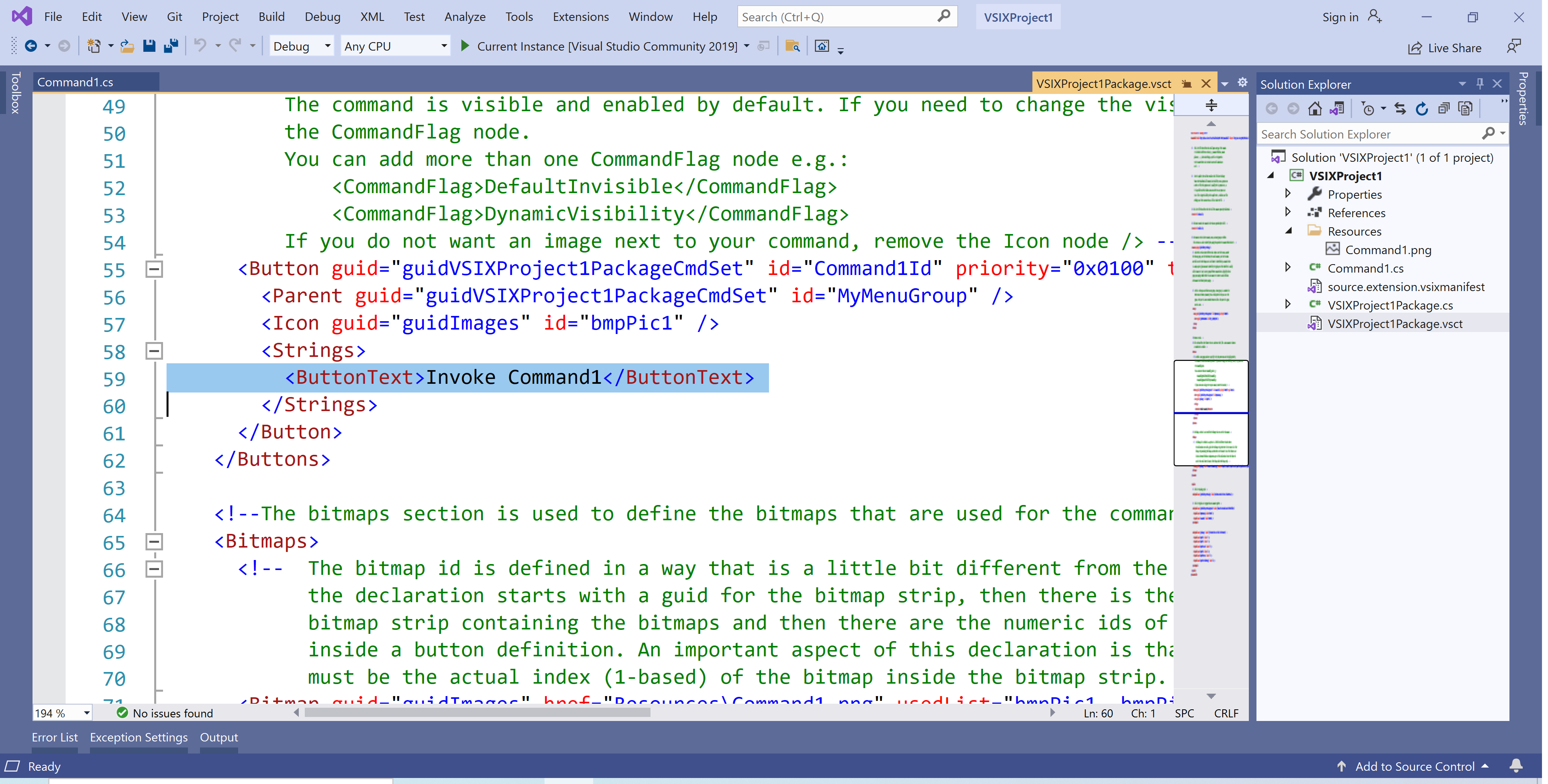

Move to L51, and write text into ButtonText.

./images/figure_20.png

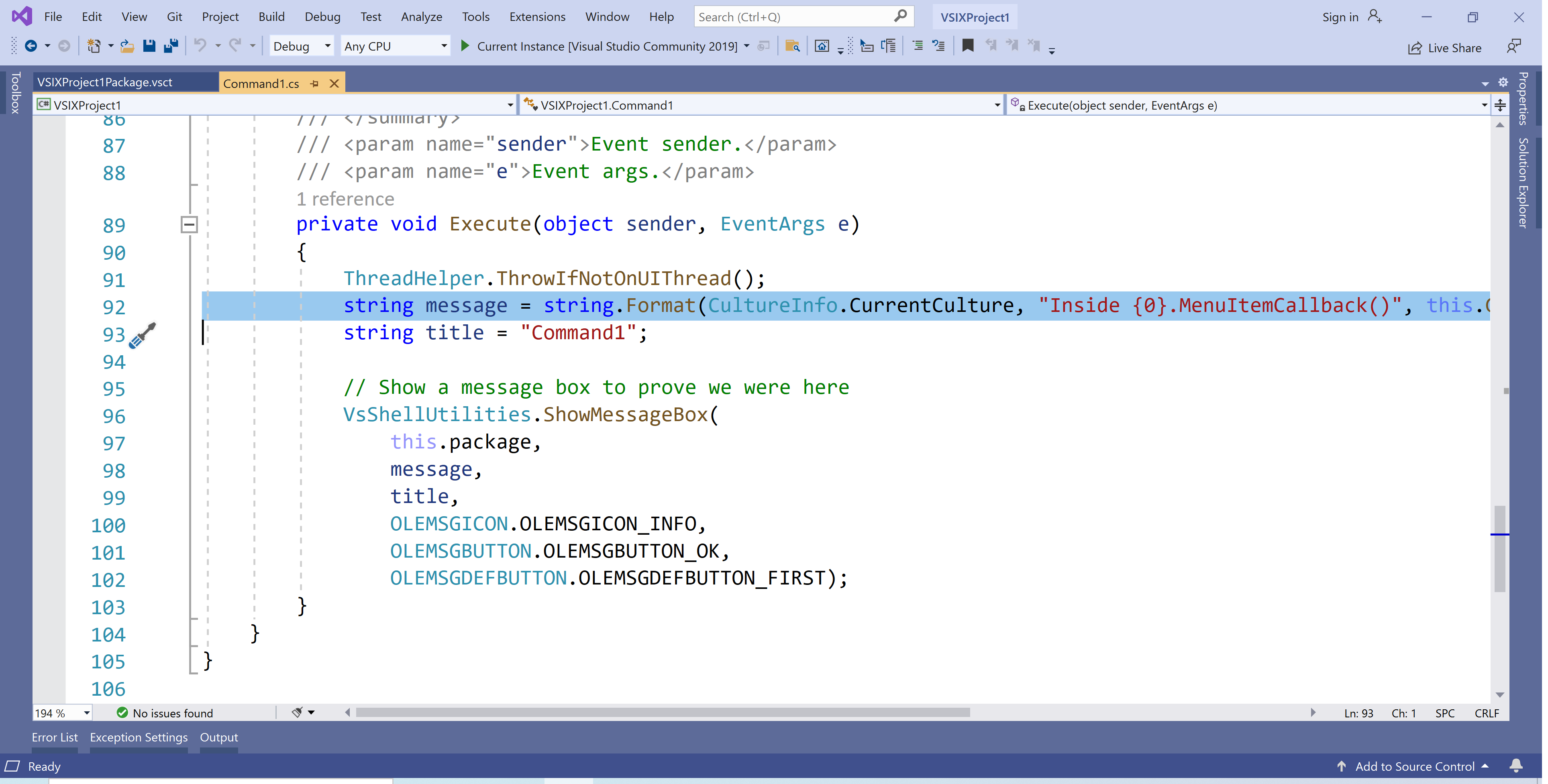

Open Command1.cs, and move to L92.

./images/figure_21.png

Write text.

./images/figure_22.png

Run to debug. Then, click Hello in Tools.

./images/figure_23.png

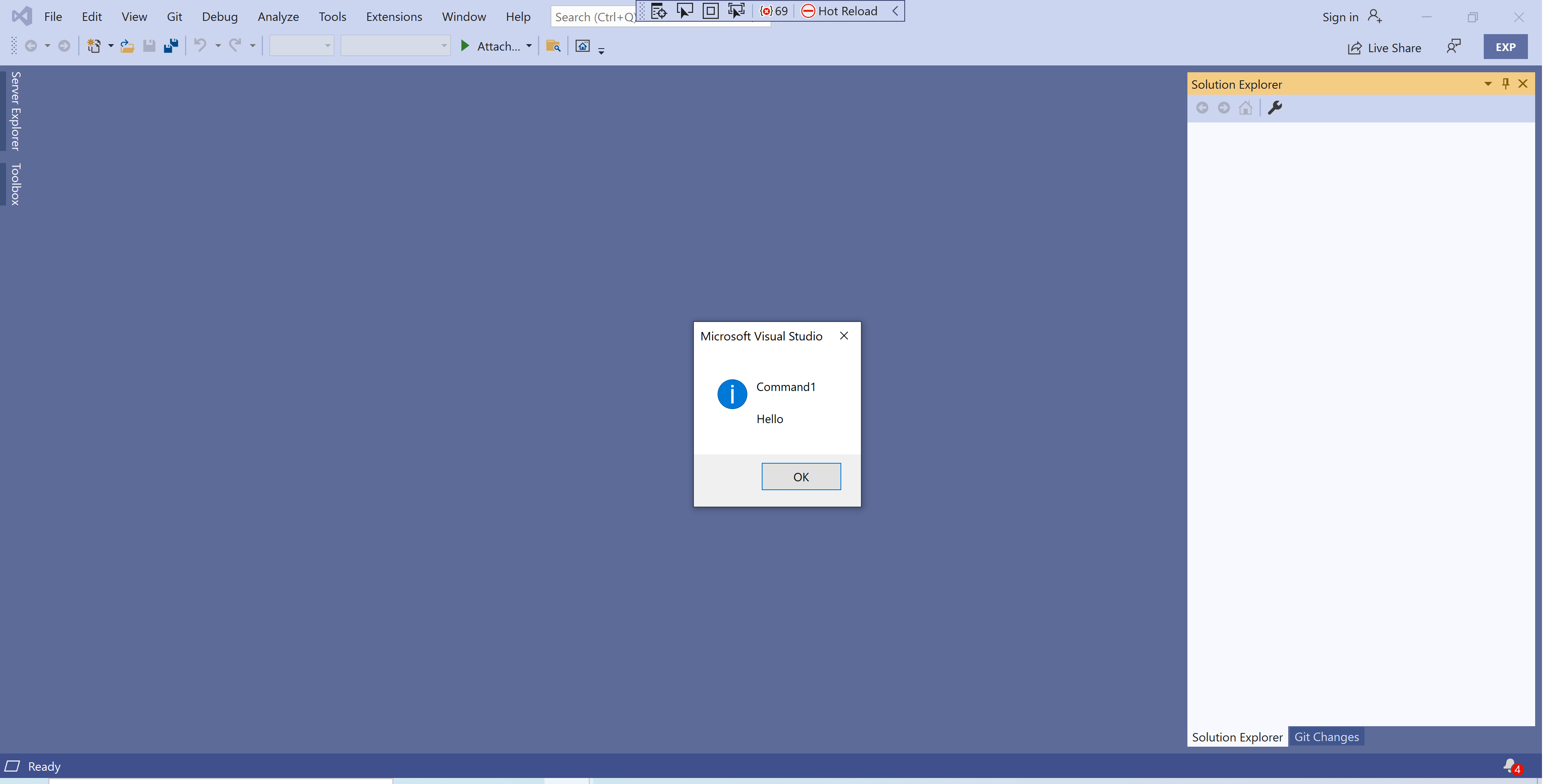

Visual Studio will show dialog.

./images/figure_24.png

Conclusion

In this post which introduced how to create and debug an Visual Studio Extension project.
